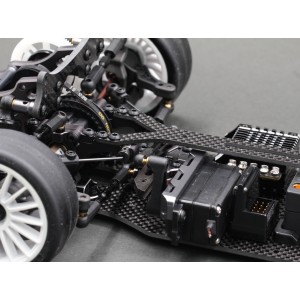

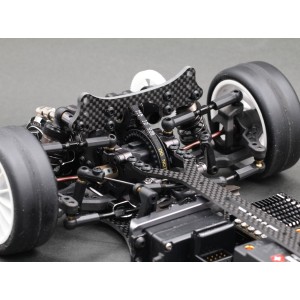

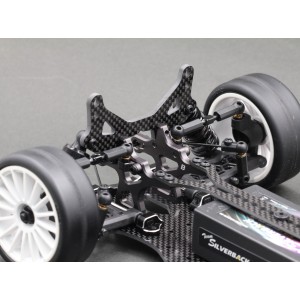

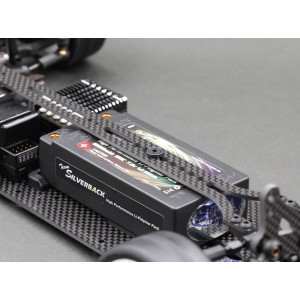

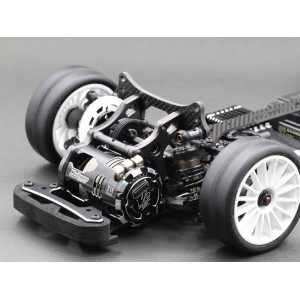

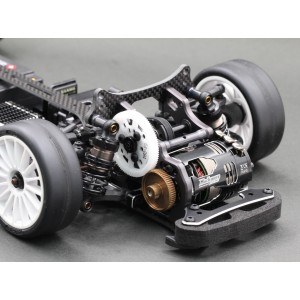

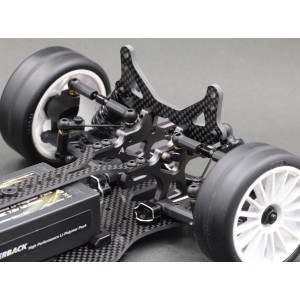

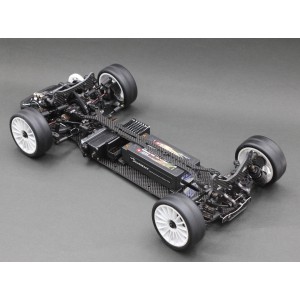

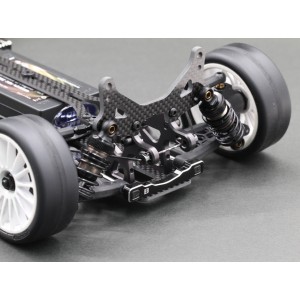

Destiny - RX-10FF 1/10 Scale Front Wheel Drive Competition Touring Car Kit (DRX-00004)

Brand: Destiny Japan
Product Code: DRX-00004
Availability:9

Description

<Destiny RX-10FF Features>

l   Transmission 37T/20T in ratio 1.85 to compatible for blink FF class race.

l   Easy remove gear differential for maintenance.

l   New design front and rear upper linkage mount.  Fine adjustment on roll center.

l   New design upper deck with multi chassis flex adjustment function. Change the flex point by screw mounting on difference position.

l   Spring Steel double joint drive shaft.  Maximum increase steering efficient and cornering speed.

l   Bearing steering rack system design.  More proportional and smooth steering feel.  Quick and easy ackerman adjustment.  Steel steering rack as more reliable.

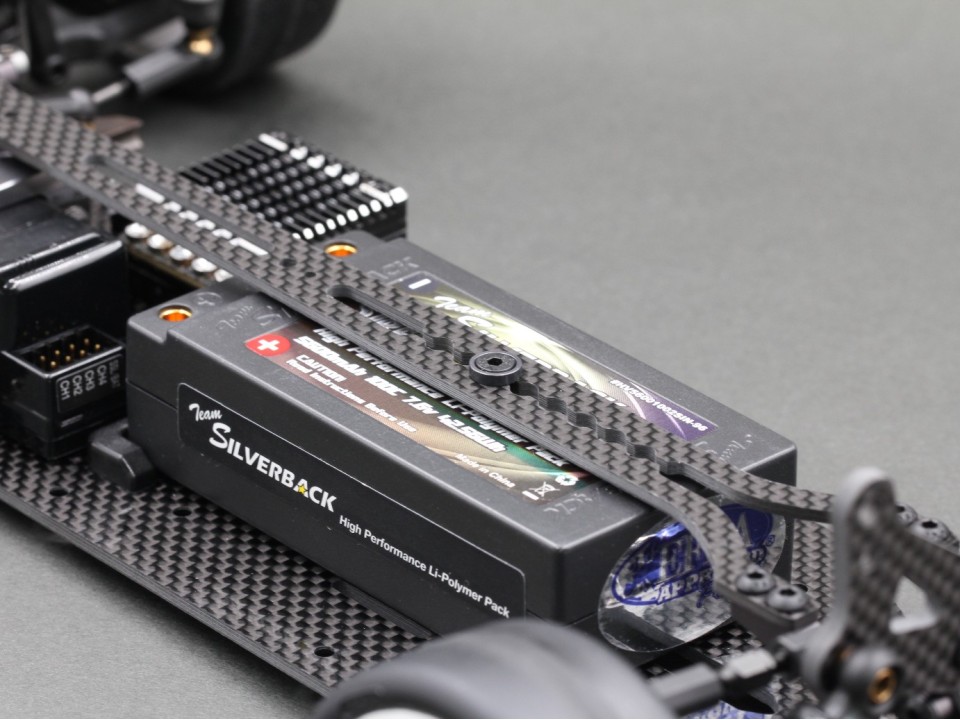

l   Battery position forward/rearward selectable.

l   New design 7075 aluminum front and rear suspension mounts.  Three different size of suspension mounts to makes wider range adjustment on track width from 40.7-49.5mm.

l   New design plastic eccentric bushing for suspension.  Fine adjustment on toe-in and toe-out angle in 0.3 degree per step.

l   New design front and rear lower 7075 aluminum bulkheads.

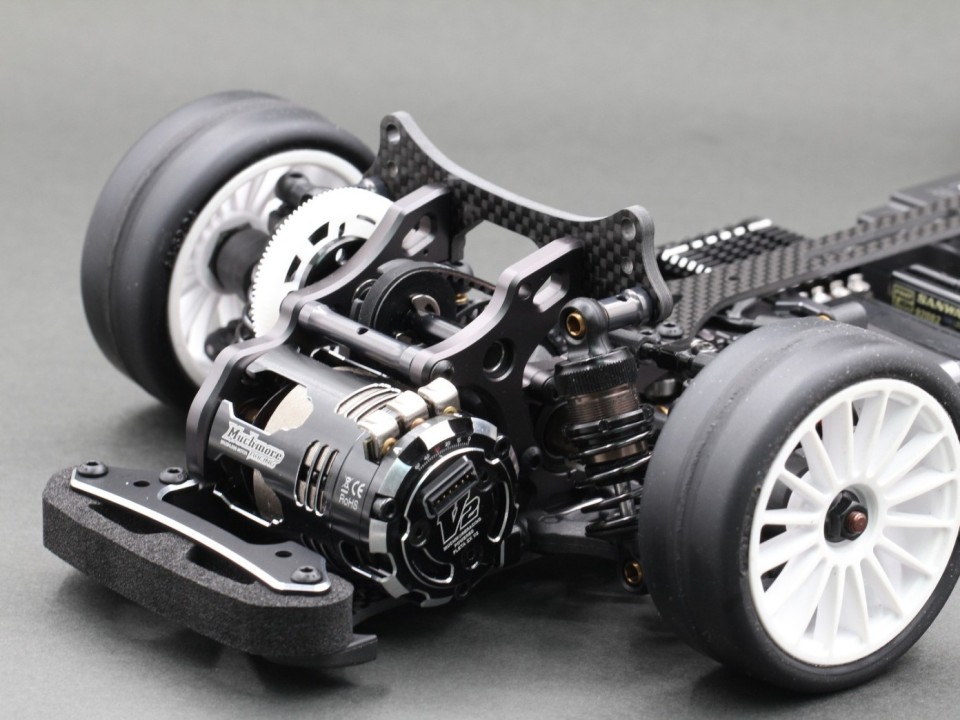

l   New design 7075 aluminum motor mount and layshaft bulkhead.

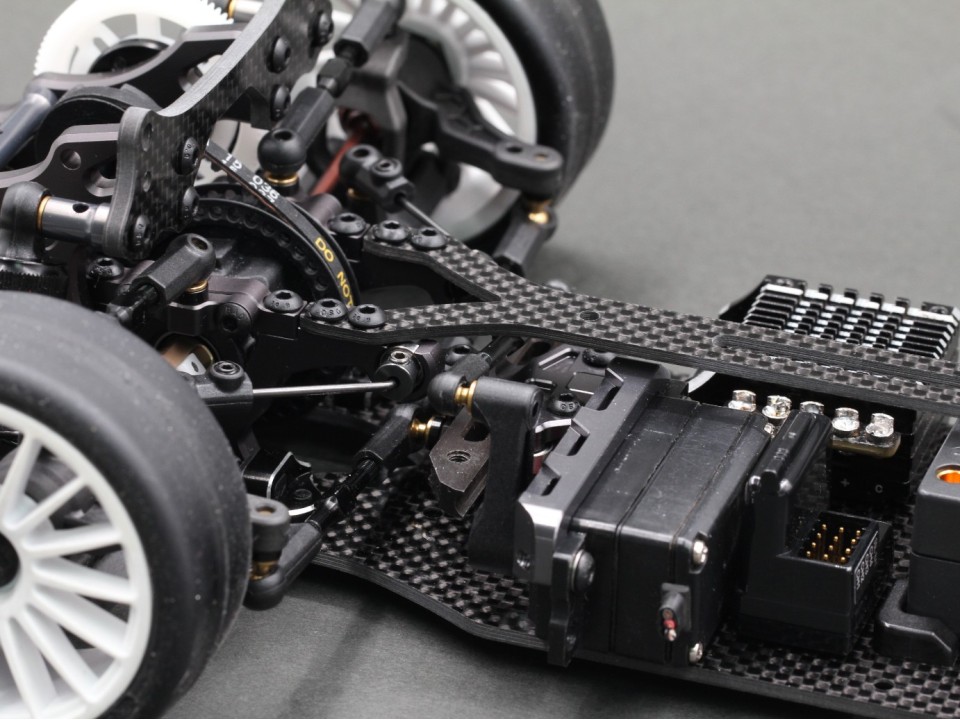

l   New design single piece 7075 aluminum servo mount and steering mount.  It makes change on chassis flex to improve the steering.

l   New design front and rear shock towers.  Made by USA high grade graphite materials.

l   2.25mm USA high grade graphite materials main chassis, 2.0mm for upper deck and 3.0mm front and rear shock towers.

l   2/4/6 deg caster insert is selectable to assembly to c-hub.  Large open on c-hub for easy install or remove front cvd.

l   All new design aluminum wheel adaptors.  Lightweight and reliable on drivetrain.

l   High grade composite front and rear lower suspension arms, steering knuckles, c-hubs and rear hubs plastic parts from Xenon Racing

l   Full set low friction coating aluminum damper balls and ball studs.

l   High precision 4 gears differential with 7075 aluminum weight reduced gear drive cups.

l   7075 aluminum steering and upper linkage turnbuckles.  Black color anodized.

l   High quality hard coated short dampers with POM pistons and 20mm damper springs.

l   Bearing supporting front and rear anti-roll bar system.

l   64P 96T spur gear from Xenon Racing

l   17 pcs high grade ball bearings.



*Products maybe subject to change without notice
